Python 量子運算（一三）：狄拉克標記

2022/12/07

-----

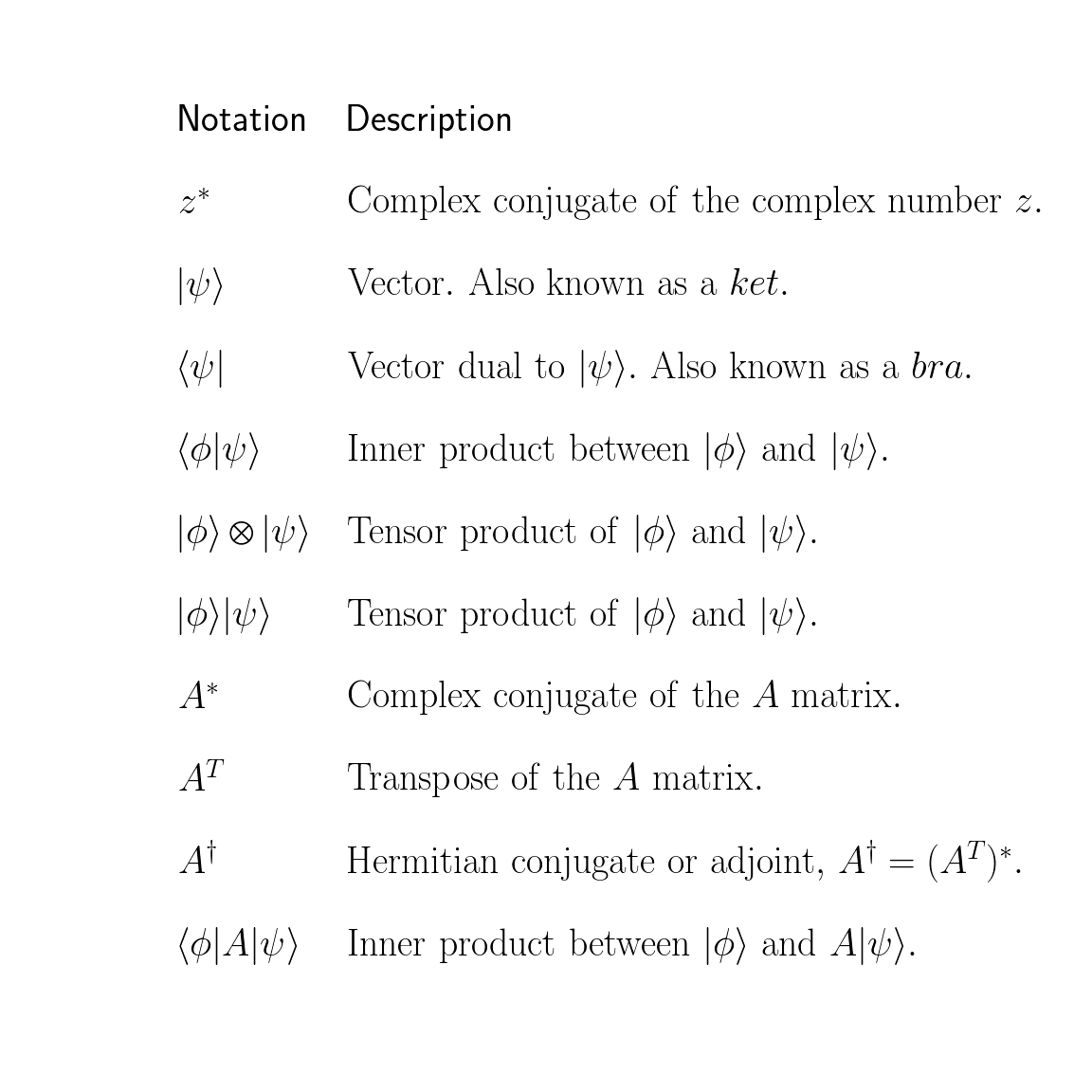

Fig. 13.1. Dirac notation (p. 62) [1].

-----

代碼 13.1

# Program 13.1：Dirac notation
import matplotlib as mpl
import matplotlib.pyplot as plt

# figure setting
mpl.rcParams['text.usetex'] = True
mpl.rcParams['text.latex.preamble'] = r'\usepackage{{amsmath}}'
mpl.rcParams['font.size'] = 40
fig, ax = plt.subplots(figsize=(16, 16))

# Notation
nttn = ['Notation',
        r'$z^*$',
        r'$\vert\psi\rangle$',
        r'$\langle\psi\vert$',
        r'$\langle\phi\vert\psi\rangle$',
        r'$\vert\phi\rangle\bigotimes\vert\psi\rangle$',
        r'$\vert\phi\rangle\vert\psi\rangle$',
        r'$A^*$',
        r'$A^T$',
        r'$A^\dag$',
        r'$\langle\phi\vert A\vert\psi\rangle$'
        ]

# Description
dctn = ['Description',
        r'${\rm Complex\ conjugate\ of\ the\ complex\ number}\ z.$',  # 1
        r'${\rm Vector.\ Also\ known\ as\ a\ }ket.$',                 # 2
        r'${\rm Vector\ dual\ to\ \vert\psi\rangle.'                  # 3
        r'\ Also\ known\ as\ a\ }bra.$',                              # 3
        r'${\rm Inner\ product\ between\ '                            # 4
        r'\vert\phi\rangle\ and\ \vert\psi\rangle.}$',                # 4
        r'${\rm Tensor\ product\ of\ '                                # 5
        r'\vert\phi\rangle\ and\ \vert\psi\rangle.}$',                # 5
        r'${\rm Tensor\ product\ of\ '                                # 6
        r'\vert\phi\rangle\ and\ \vert\psi\rangle.}$',                # 6
        r'${\rm Complex\ conjugate\ of\ the\ }A\ {\rm matrix}.$',     # 7
        r'${\rm Transpose\ of\ the\ }A\ {\rm matrix}.$',              # 8
        r'${\rm Hermitian\ conjugate\ or\ adjoint,\ }$'               # 9
        r'$A^\dag=(A^T)^*.$',                                         # 9
        r'${\rm Inner\ product\ between\ '                            # 10
        r'\vert\phi\rangle\ and\ }A\vert\psi\rangle.$']               # 10

for i in range(11):
    ax.text(0.05, 1-0.1*i, nttn[i])
    ax.text(0.25, 1-0.1*i, dctn[i])

ax.set_axis_off()

# plt.savefig('/content/drive/My Drive/pqc/0013_001.png')
plt.show()
